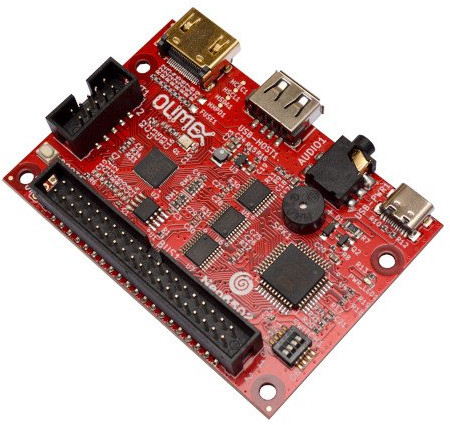

Welcome to the Olimex Neo6502 Documentation

There is pdf copy of this documentation here

Real 65C02 Processor clocked at 6.25 Mhz
"Clean" machine, 64k RAM available
Low cost purchase, sold for 30 Euros
All software and hardware is open source
Wifi support (requires additional inexpensive board)
320 x 240 256 colour display on HDMI/DVI with a palette
32k Graphics RAM for tiles and sprites
128 sprites up to 32x32 pixels.
Multiple tile maps (16x16 tiles, can be double sized)
High speed drawing features
Turtle Graphics
Blitter for high speed graphics
UEXT interface to access a wide range of hardware add ons.
4 channels of square wave or white noise sound
Predefined set of sound effects.
Storage USB Key (optionally can use SD Card)
Fast structured BASIC with hardware support and inline assembler.
BASIC can be edited on screen, or using a text editor.
High Speed Integer/Floating point arithmetic
Documentation, samples, explainers and games, all open source.
Cross development support
Accurate cross platform emulator for Windows/Mac/Linux, only requires SDL2
Serial link to PC for Cross-Development
Program in PASCAL using Mad Pascal compiler
Program in 'C' using CC65 and LLVM
USB Mouse and Gamepad support
BASIC support for Serial, I2C and SPI hardware via UEXT Connector
